| P/N |
Column |
ID |
df (Film Thickness) |
Length |

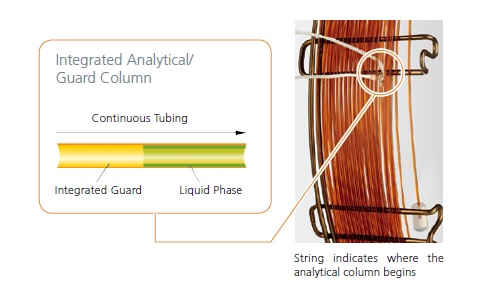

Integrated Guard column |
| 221-75719-31 |
SH-1 |
0.25 mm |
0.25 μm |
30 m |
with 5 m Integrated Guard |
| 221-75731-31 |
SH-1 |
0.53 mm |
1.00 μm |
30 m |
with 5 m Integrated Guard |
| 227-36333-01 |
SH-1 |
0.53 mm |
1.50 μm |
30 m |
with 5 m Integrated Guard |
| 221-75734-31 |
SH-1 |
0.53 mm |
5.00 μm |
30 m |
with 5 m Integrated Guard |
| 227-36346-01 |
SH-I-1MS |
0.25 mm |
0.10 μm |
15 m |
with 2 m Integrated Guard |
| 221-76164-35 |
SH-1301 |
0.53 mm |
3.00 μm |
30 m |
with 5 m Integrated Guard |
| 221-76185-30 |
SH-1701 |
0.25 mm |
0.25 μm |
30 m |
with 5 m Integrated Guard |
| 221-76153-05 |
SH-5 |
0.25 mm |
0.25 μm |
30 m |
with 5 m Integrated Guard |
| 221-76153-30 |
SH-5 |
0.25 mm |
0.25 μm |
30 m |
with 10 m Integrated Guard |
| 221-76179-30 |
SH-5 |
0.25 mm |
1.00 μm |
30 m |
with 5 m Integrated Guard |
| 221-76177-30 |
SH-5 |
0.32 mm |
0.25 μm |
30 m |
with 5 m Integrated Guard |
| 221-76177-60 |
SH-5 |
0.32 mm |
0.25 μm |
60 m |
with 5 m Integrated Guard |
| 221-76180-30 |
SH-5 |
0.32 mm |
1.00 μm |
30 m |
with 5 m Integrated Guard |
| 221-76154-35 |
SH-5 |
0.53 mm |
5.00 μm |
30 m |
with 5 m Integrated Guard |
| 221-76189-30 |
SH-5MS |
0.25 mm |
0.10 μm |
30 m |
with 5 m Integrated Guard |
| 221-75861-15 |
SH-5MS |
0.25 mm |
0.25 μm |
15 m |
with 5 m Integrated Guard |
| 221-75861-05 |
SH-5MS |
0.25 mm |
0.25 μm |
30 m |
with 5 m Integrated Guard |
| 221-75861-10 |
SH-5MS |
0.25 mm |
0.25 μm |
30 m |
with 10 m Integrated Guard |
| 221-76190-30 |
SH-5MS |
0.32 mm |
0.25 μm |
30 m |
with 5 m Integrated Guard |
| 221-76161-30 |
SH-I-5Sil MS |
0.25 mm |
0.25 μm |
30 m |
with 5 m Integrated Guard |
| 221-76162-30 |
SH-I-5Sil MS |
0.25 mm |
0.25 μm |
30 m |
with 10 m Integrated Guard |
| 221-76183-30 |
SH-624 |
0.25 mm |
1.40 μm |
30 m |
with 5 m Integrated Guard |
| 221-76157-35 |
SH-624 |
0.32 mm |
1.80 μm |
30 m |
with 5 m Integrated Guard |
| 221-76158-30 |
SH-624 |
0.53 mm |
3.00 μm |
30 m |
with 5 m Integrated Guard |
