SH-225

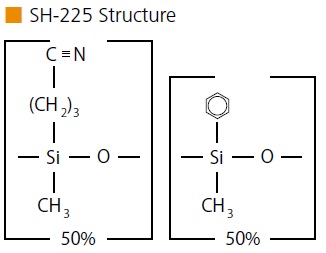

  • Polar phase: Crossbond™ 50% cyanopropylmethyl / 50% phenylmethyl polysiloxane
  • General-purpose columns for FAMEs, carbohydrates, sterols, flavor compounds.
  • Equivalent to USP G7 and G19 phases.
  • Similar phases: Rtx-225, DB-225, CP-Sil 43 CB, SPB-225, BP-225, 007-225, AT-225
P/N ID df (Film Thickness) Length Temp. Range
227-36229-01 0.25 mm 0.25 μm 30 m 40 to 220/240°C
227-36229-02 0.25 mm 0.25 μm 60 m 40 to 220/240°C
227-36230-01 0.25 mm 0.50 μm 30 m 40 to 220/240°C
227-36231-01 0.32 mm 0.10 μm 30 m 40 to 220/240°C
227-36232-01 0.32 mm 0.25 μm 30 m 40 to 220/240°C
227-36233-01 0.32 mm 0.50 μm 30 m 40 to 220/240°C
227-36234-01 0.32 mm 1.00 μm 30 m 40 to 200/220°C
227-36234-02 0.32 mm 1.00 μm 60 m 40 to 200/220°C
227-36235-01 0.53 mm 0.25 μm 30 m 40 to 200/220°C
227-36236-01 0.53 mm 0.50 μm 30 m 40 to 200/220°C
227-36237-01 0.53 mm 1.00 μm 30 m 40 to 200/220°C
