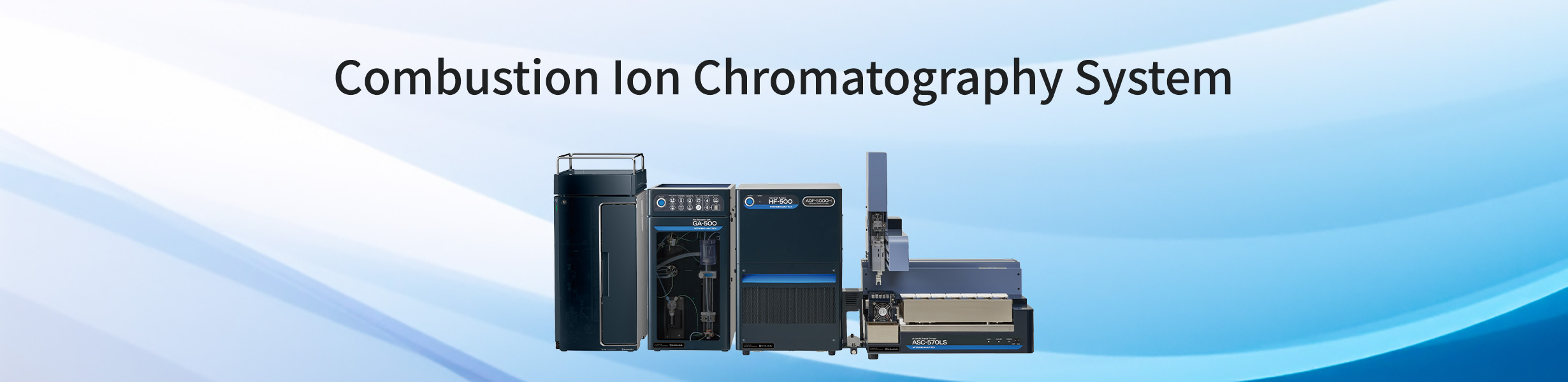

Combustion Ion Chromatography System

• The system is ideal for applications such as evaluating halogen-free electrical/electronic materials, analyzing the fluorine content in iron and steel slag, analyzing the total bromine content in waste plastics, and analyzing the sulfur content in materials.
• The absorption solution processed by the automatic quick furnace is automatically injected into and analyzed by the ion chromatograph.

• All process steps, from calibration curve preparation by the ion chromatograph to sample measurement, can be performed automatically.
• The ES-500 external liquid selector (optional) can be used to automatically switch between six standard solutions for preparing calibration curves and introduce them into the ion chromatograph.

• The AOF method enables screening of the total content of PFAS (per- and polyfluoroalkyl substances, organic fluorine compounds).

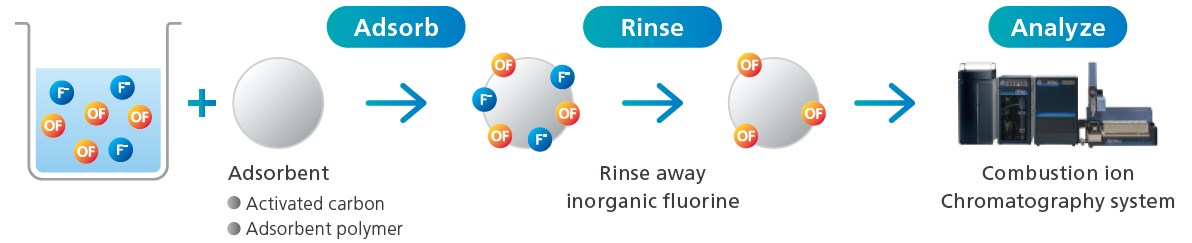

AOF Method

Organic fluorine compounds in a sample solution are collected using an adsorbent, and the total fluorine content is then analyzed with a combustion ion chromatograph.

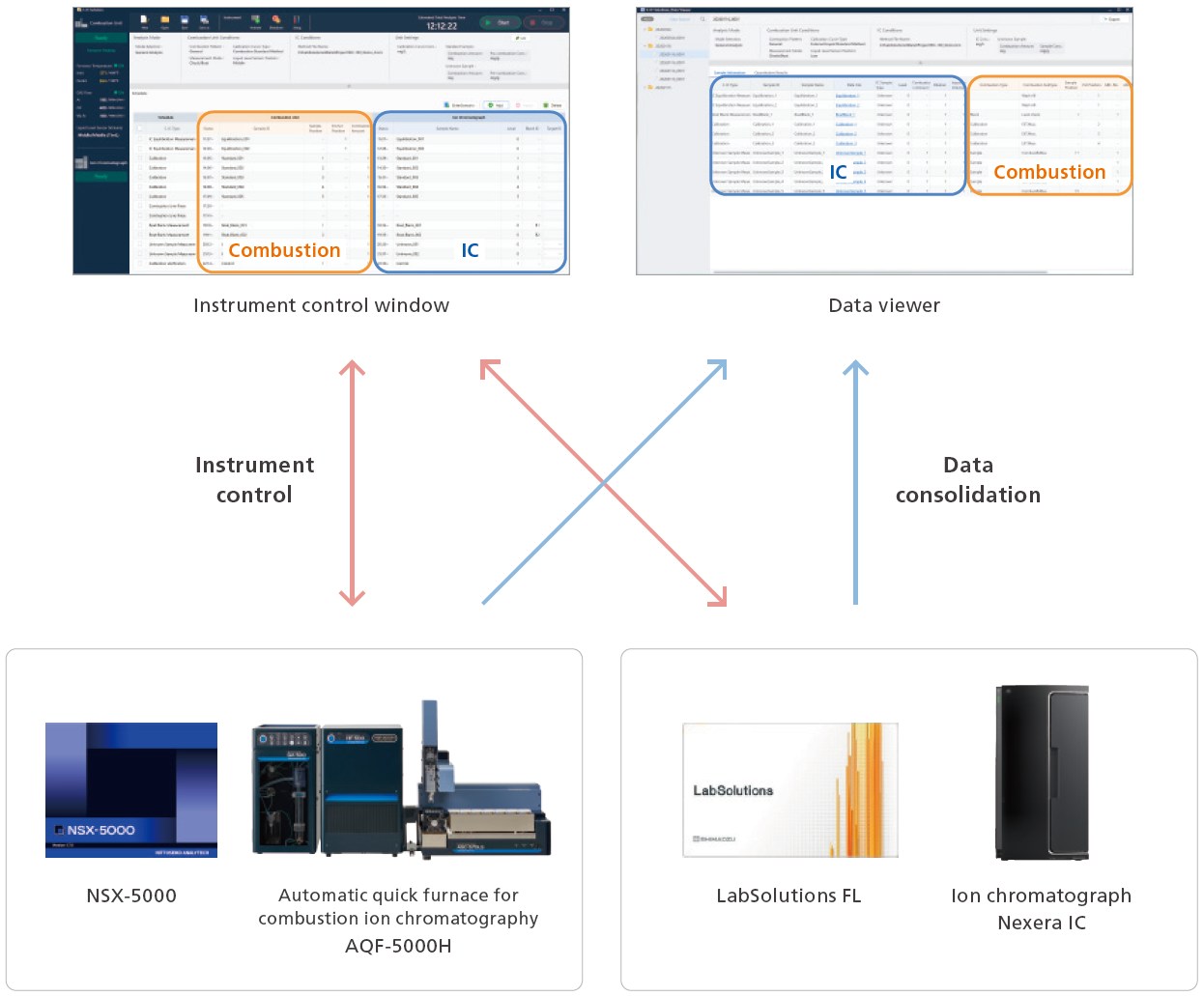

• C-IC Solution software enables integrated control of both the Nittoseiko Analytech automatic quick furnace and the Shimadzu ion chromatograph.
• The software calculates the content in samples based on information from the combustion process and the quantitative results obtained by the ion chromatograph.
• The results can be viewed using the data viewer function.

• It features an overlapped combustion function that performs combustion while analysis is underway in the ion chromatograph, which improves throughput.
• The user interface provides an intuitive display of both the analysis status in the ion chromatograph and the combustion processing status in the automatic quick furnace.

For inquiries about the automatic quick furnace, contact the following:

7-10-1 Chuo-rinkan, Yamato, Kanagawa, 242-0007, Japan
TEL: +81-46-278-0056 FAX: +81-46-278-0057

https://www.n-analytech.co.jp/global/
