SH-5MS

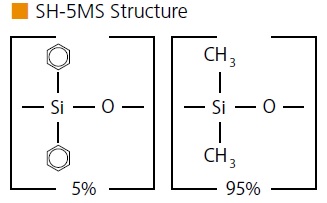

- Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane
- Column specifically tested for low-bleed performance.
- General-purpose columns for drugs, solvent impurities, pesticides, hydrocarbons, PCB congeners (e.g., Aroclor mixes), essential oils, semi-volatiles.
- Equivalent to USP G27 and G36 phases.
- Similiar phases: Rtx-5MS, HP-5, DB-5, CP Sil 8 CB, SPB-5, BP-5, ZB-5, 007-5, AT-5, EC-5
P/N | ID | df (Film Thickness) | Length | Temp. Range |
---|---|---|---|---|
221-75854-15 | 0.25 mm | 0.10 μm | 15 m | -60 to 330/350°C |
221-75854-30 | 0.25 mm | 0.10 μm | 30 m | -60 to 330/350°C |
227-36122-01 | 0.25 mm | 0.10 μm | 60 m | -60 to 330/350°C |
221-75855-15 | 0.25 mm | 0.25 μm | 15 m | -60 to 330/350°C |
221-75855-30 | 0.25 mm | 0.25 μm | 30 m | -60 to 330/350°C |
227-36123-01 | 0.25 mm | 0.25 μm | 60 m | -60 to 330/350°C |
227-36124-01 | 0.25 mm | 0.50 μm | 30 m | -60 to 330/350°C |
227-36124-02 | 0.25 mm | 0.50 μm | 60 m | -60 to 320/350°C |
221-75857-30 | 0.25 mm | 1.00 μm | 30 m | -60 to 325/350°C |
227-36125-01 | 0.32 mm | 0.10 μm | 30 m | -60 to 330/350°C |
227-36125-02 | 0.32 mm | 0.10 μm | 60 m | -60 to 330/350°C |
221-75858-30 | 0.32 mm | 0.25 μm | 30 m | -60 to 330/350°C |
221-75858-60 | 0.32 mm | 0.25 μm | 60 m | -60 to 330/350°C |
227-36126-01 | 0.32 mm | 0.50 μm | 30 m | -60 to 330/350°C |
227-36126-02 | 0.32 mm | 0.50 μm | 60 m | -60 to 330/350°C |
227-36127-01 | 0.32 mm | 1.00 μm | 30 m | -60 to 325/350°C |
221-76191-30 | 0.53 mm | 0.50 μm | 30 m | -60 to 320/340°C |
227-36128-01 | 0.53 mm | 1.00 μm | 30 m | -60 to 320/340°C |
227-36129-01 | 0.53 mm | 1.50 μm | 30 m | -60 to 310/330°C |
For SH-5MS Columns with Integrated Guard column, please refer to the Integrated Guard Columns' page.
